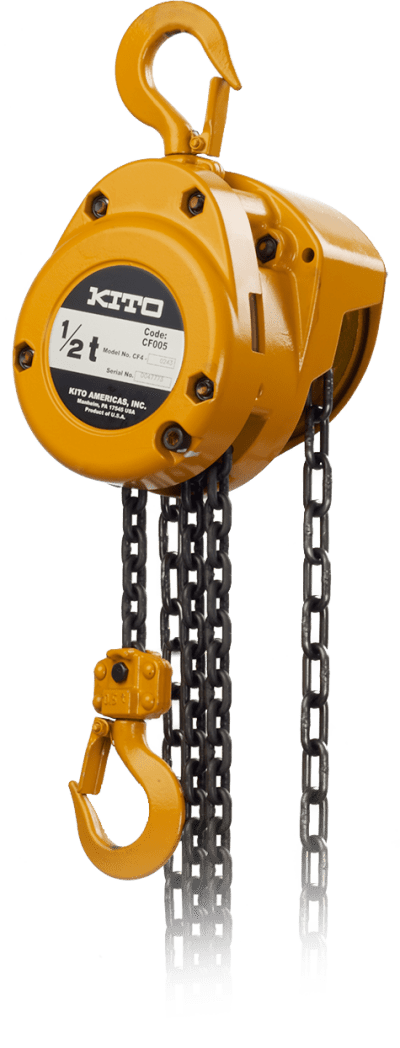

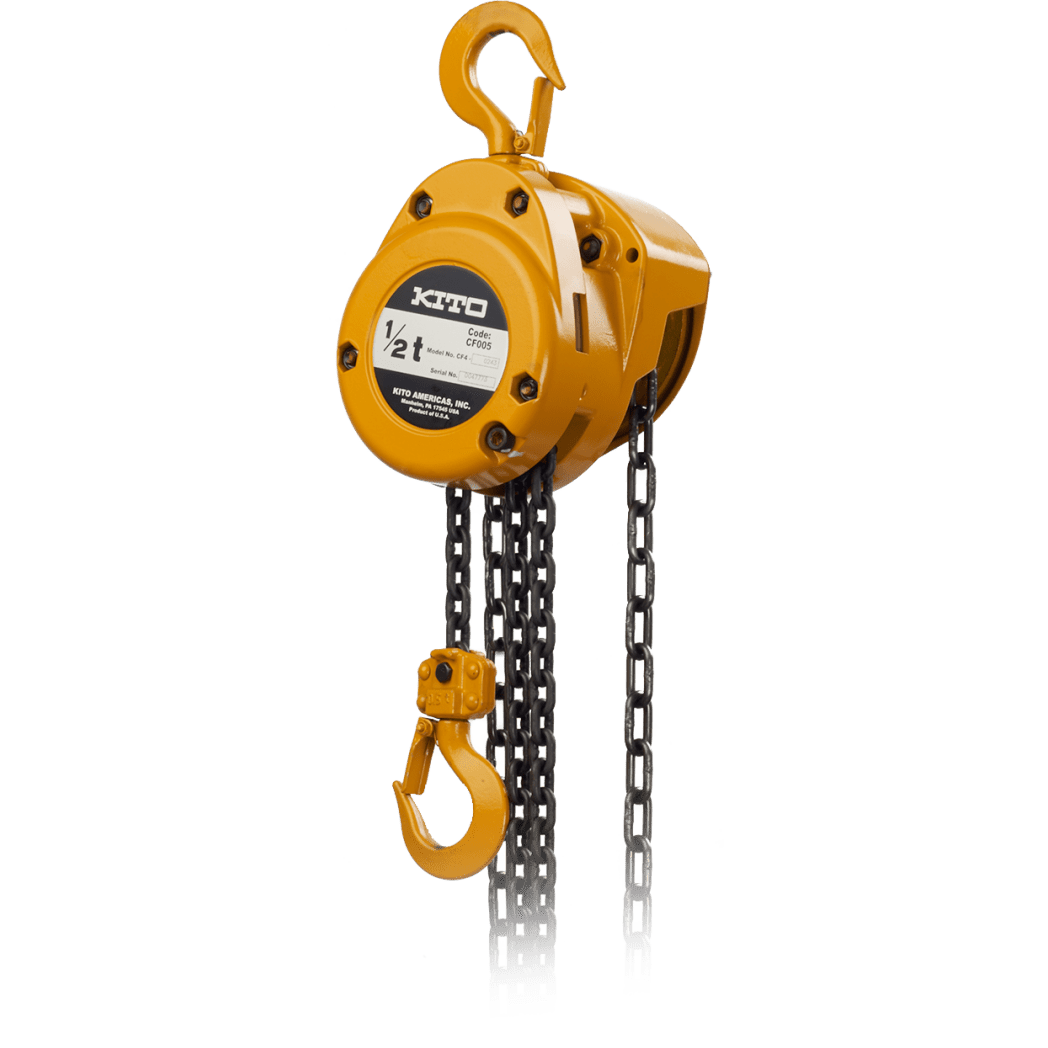

Kito CF Standard Duty Hand Chain Hoist
CAPACITY: 1/2 - 3 metric tonnes
COMPLIANCE
ANSI/ASME B30.16, “Safety Standard—Overhead Hoists (Underhung).”
ANSI/ASME HST—2M, “Performance Standard for Hand Chain Manually Operated Chain Hoists.”

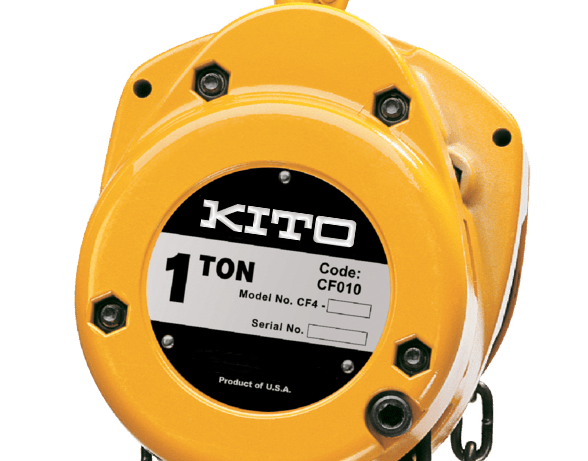

BODY
Exceptionally strong thick die-cast aluminum body
Compact, lightweight and portable
high-strength, heat-treated main pinion shaft and load gear
HAND CHAIN
Durable steel hand chain
Hand chain length is 2' shorter than Standard Lift length
LOAD CHAIN
Grade 100
Heat-treated manganese alloy steel
high impact steel chain guide
Resists abrasion and wear
HOOKS
Forged and heat-treated alloy steel hooks are designed to open slowly, without fracturing under excessive loads
Top and bottom hooks have heavy-duty hook latch
OPERATION
Hand chain operated
Low hand-pull force for easy operation

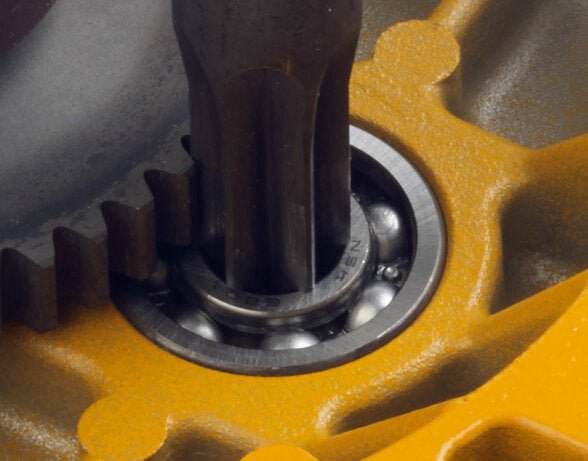

BEARINGS
Smooth running, pre-lubricated ball bearings
Precision-machined drive train components
Maintenance-free sealed bearings

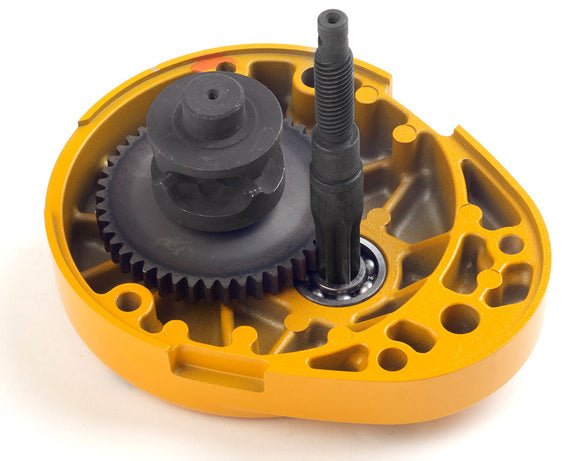

GEARS
Single reduction gearing provides fast load hook travel
Induction heat-treated and case hardened
Enclosed to protect from dust and water

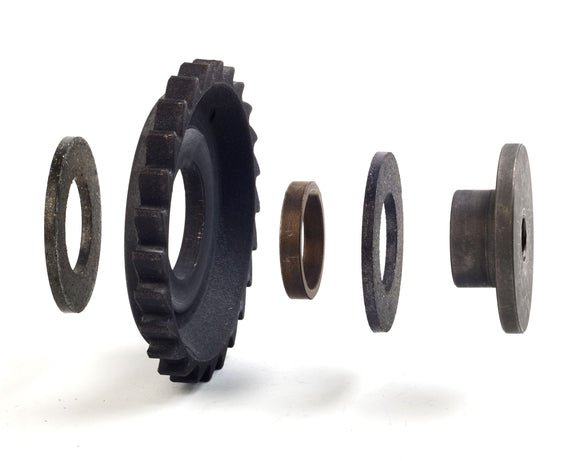

BRAKE
Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
Enclosed to protect from dust, rain, and dirt
OPTIONS
Nickel-plated chain for corrosive environments
Lift lengths can be customized to suit requirements
OPERATING CONDITIONS
Recommended for -40° to +60° C
