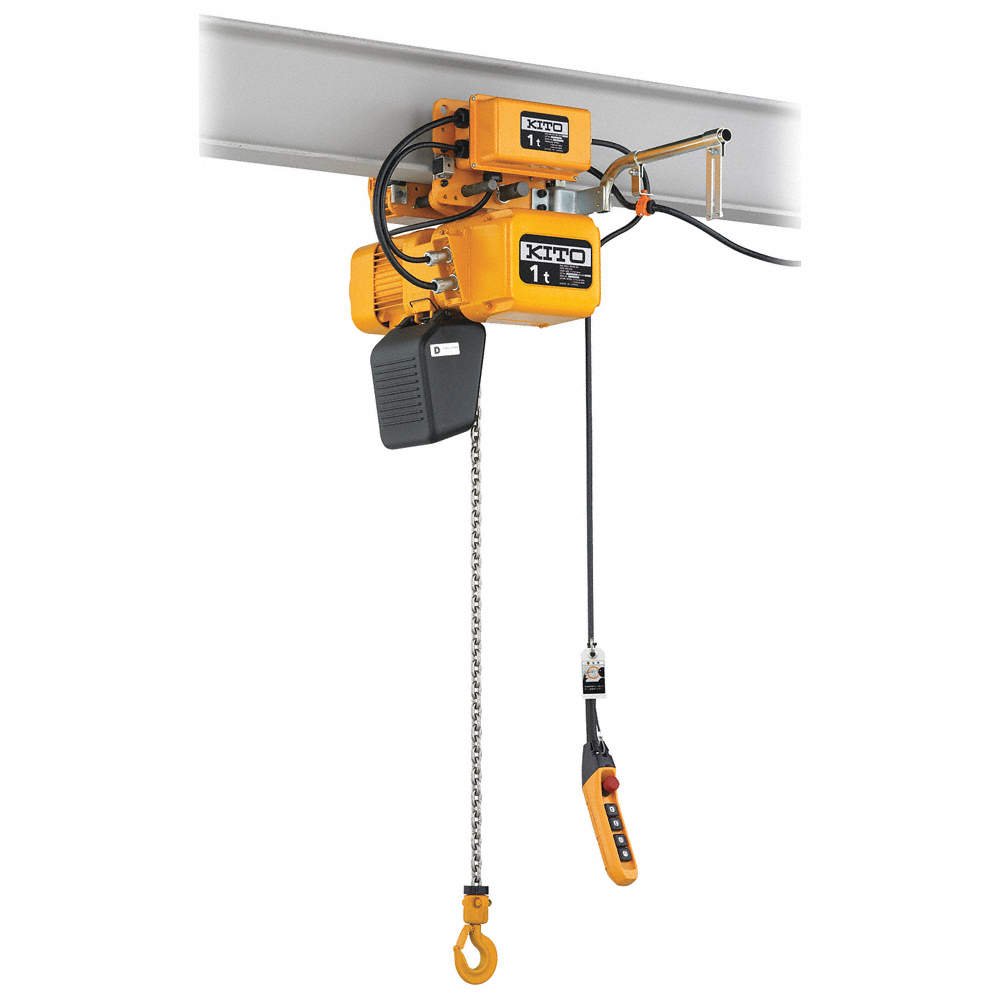

Kito ER2 Dual Speed Electric Chain Hoist W/ Motorized Trolley - 1/2 Tonne

Capacity: 1/2 Tonne    Connection: Motorized Trolley    Hoist Lifting Speed: 28/7 ft/min

STANDARDS

• CSA approved
• ASME B30.16
• ASME H4
• IP55 dust-tight and watertight

OPTIONS

• Plastic, canvas, or steel chain containers
• Long lift chain container
• Lift lengths can be customized to suit requirements
• Plain, geared, or motorized trolley mount
• Food Grade (FER2)
• Mechanical Brake (BER2)
• Angle lifting to 45˚ (AER2)
• Short headroom (SHER2)
• Twin hook (TWER2)
• OLL (Load limiter) - External, bolt on. Range is 90 ~ 135 % of the rated capacity with ±8% accuracy
• **Contact us directly to add special options

BODY

• Die cast aluminum frame
• Completely sealed body for environmental protection
• Low headroom

GEARS

• Precision, induction-heated, durable alloy steel helical gears submersed in an oil bath

LOAD CHAIN

• Ultra-strong high-performance and corrosion resistant nickel-plated load chain, with unique short link pitch for greater resistance to fatigue and wear
• Grade 80

CHAIN GUIDE

• Long-lasting, heavy-duty cast iron construction, easily replaced without disassembling hoist

HOOKS

• Forged carbon steel opens gradually without fracturing under excessive loads. Bottom hook swivels 360 degrees
• Self-closing top and bottom hooks with heavy-duty hook latch

CONTROLS

• Controls located on a central electrical panel
• Control Voltage: 110 volts
• Simple to operate plug-in connectors
• Adjustable, dual-speed, under-the-cover VFD (220 and 440 volt dual speed models)
• (Optional) Ergonomic Cylinder Control Ideal for repetitive tasks- available in Adjustable 2-speed (220/440 volt) Dual Speed (575 volt)

ERGONOMIC PUSHBUTTON STATION

• Impact-resistant plastic with molded strain relief to prevent damage from pulling on the push button cord
• IP65 dust-tight and watertight

BEARINGS

• High-quality, anti-friction ball and roller design

BRAKE

• DC current electromagnetic brake stays engaged until powered (Industry leading 10 year warranty)
• Minimum brake torque of 200% at full load

MOTOR

• Three phase
• Standard Voltage: 220/440/575 volts
• 60 hertz
• Class B
• Extreme duty, totally enclosed, fan-cooled (TEFC) squirrel cage
• Motor fin, fan blade and fan cover design for optimum air flow

OVERLOAD PROTECTION

• Friction clutch located in the gearbox between motor and load gear prevents damage to hoist in the event of excessive overloading
• Optional Mechanical Brake (BER2)
• Optional OLL (Load limiter) - External, bolt on. Range is 90 ~ 135 % of the rated capacity with ±8% accuracy

OVERTRAVEL PROTECTION

• Limit switch disables controls when load block reaches upper or lower travel limit

OPERATING CONDITIONS

• Recommended for -20˚ to +40˚ C and humidity of 85% or lower

REGISTERED TRADEMARK

• The black and yellow trade dress is a registered trademark of Kito, Fed. Reg. No. 7,342,071. All Rights Reserved.
