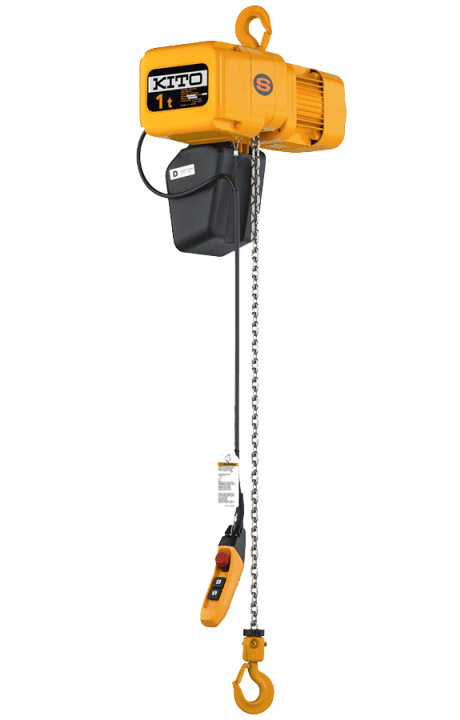

Kito ER2 Single Speed Electric Chain Hoist W/ Hook Suspension - 1 Tonne

Capacity: 1 Tonne     Connection: Hook Mount     Hoist Lifting Speed: 28 ft/min

STANDARDS

• CSA approved
• ASME B30.16
• ASME H4
• IP55 dust-tight and watertight

BODY

• Die cast aluminum frame
• Completely sealed body for environmental protection
• Low headroom

GEARS

• Precision, induction-heated, durable alloy steel helical gears submersed in an oil bath

LOAD CHAIN

• Ultra-strong high-performance and corrosion resistant nickel-plated load chain, with unique short link pitch for greater resistance to fatigue and wear
• Grade 80

CHAIN GUIDE

• Long-lasting, heavy-duty cast iron construction, easily replaced without disassembling hoist

HOOKS

• Forged carbon steel opens gradually without fracturing under excessive loads. Bottom hook swivels 360 degrees
• Self-closing top and bottom hooks with heavy-duty hook latch

CONTROLS

• Controls located on a central electrical panel
• Control Voltage: 110 volts
• Simple to operate plug-in connectors
• Adjustable, dual-speed, under-the-cover VFD (220 and 440 volt dual speed models)
• (Optional) Ergonomic Cylinder Control Ideal for repetitive tasks- available in Adjustable 2-speed (220/440 volt) Dual Speed (575 volt)

ERGONOMIC PUSHBUTTON STATION

• Impact-resistant plastic with molded strain relief to prevent damage from pulling on the push button cord
• IP65 dust-tight and watertight

BEARINGS

• High-quality, anti-friction ball and roller design

BRAKE

• DC current electromagnetic brake stays engaged until powered (Industry leading 10 year warranty)
• Minimum brake torque of 200% at full load

ER2 Single Speed Hoist, Hook Suspension, 1/2 tonne capacity, 10 ft lift, 29 ft/min speed, 1.2 HP motor, 220V/440V/575V
