Kito L5LB Heavy Duty Lever Hoist

CAPACITY: 1 1/2 - 6 Ton

COMPLIANCE

ANSI/ASME B30.21, “Safety Standard—Manually Lever Operated Hoists.”
ANSI/ASME HST—3M, “Performance Standard for Manually Lever Operated Chain Hoists.”

BODY
Rugged, high-impact, all-steel construction weighs less than comparable aluminum models
Compact and lightweight

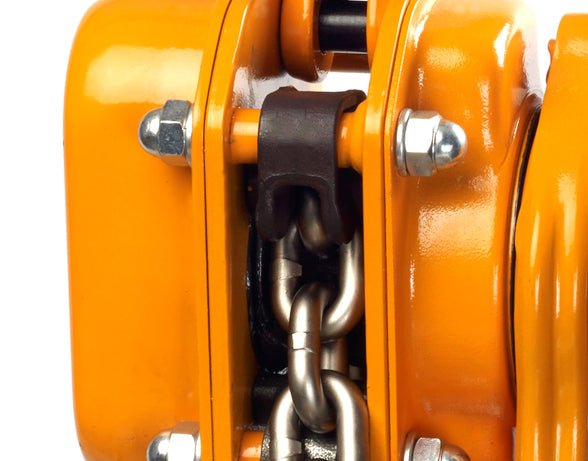

Open design for easy inspection and cleaning without dismantling the unit

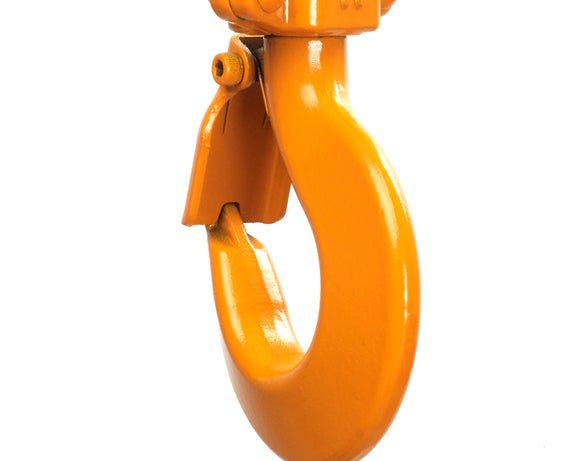

HOOKS
Forged, heat-treated alloy steel hooks open gradually without fracturing under excessive load
Top and bottom hooks have heavy-duty hook latch
Top and bottom hooks rotate 360 degrees

OPERATION

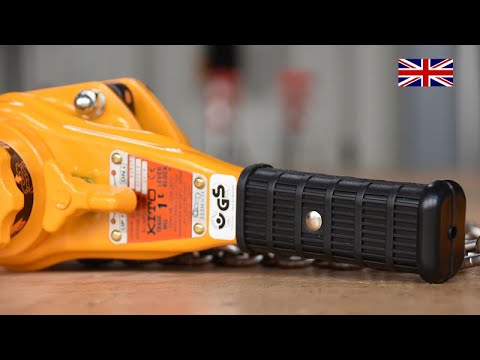

Rubber grip handle for non-slip operation
Operate in close quarters with short handle and 15-degree recovery stroke
Patented spring-loaded freewheel mechanism for easy adjustment of the load chain and protection against accidental freewheeling under load

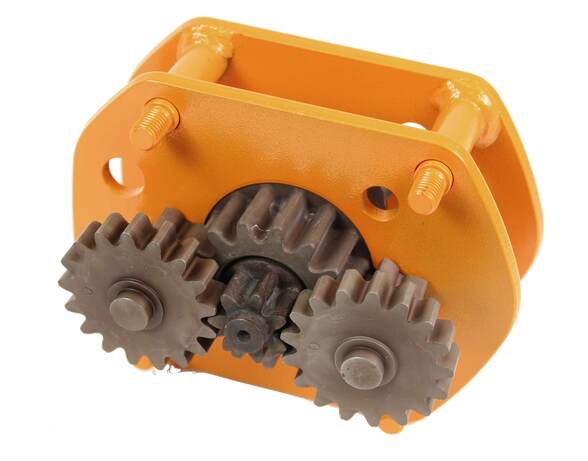

GEARS
Highly durable, split-load double reduction gears
Induction heat-treated and case-hardened
Enclosed to protect from dust and moisture

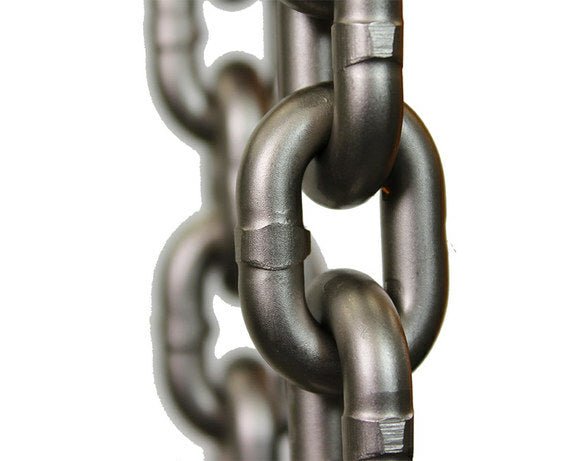

LOAD CHAIN
Nickel-plated for corrosion resistance
Grade 100 heat-treated
Standard lift: 5', 10', 15' or 20'

BRAKE
Weston-style load brake with four braking surfaces, two brake pads and two brake pawls for added safety
The totally enclosed brake mechanism protects from dirt and moisture

OPTIONS

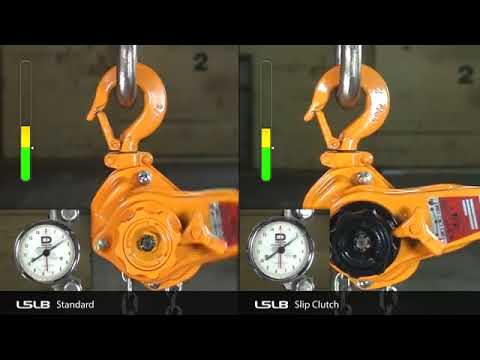

Slip clutch to prevent the hoist from being used to lift damaging loads beyond rated capacity
Top hook extender to locate the hoist body away from its attachment point
Load limit warning handle to alert the operator when the hoist is being used to lift damaging loads beyond rated capacity
Shipyard / Point hooks accommodate point loading
Bullard® and Shur-Loc® hooks provide a locking latch feature
Inspection hooks allow for inspection of the internal parts of the hook set
Custom lift lengths to suit requirements

**Contact us directly to add special options
