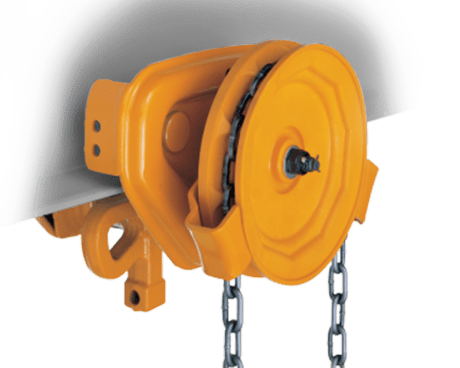

Kito TSG Geared Manual Trolley with Safety Lugs

Min Radius for Curve/Hand Chain Drop:  1 tonne - 1300 mm/ 8ft

                                                                   2 tonne - 1500 mm/ 10ft

                                                                   3 tonne - 1700 mm/ 10ft

                                                                   5 tonne - 2300 mm/ 10ft

10' Hand Chain Drop (inquire for longer lengths)

STANDARDS

• Operating Conditions: -20° to +60° Celsius
• Safety lugs supplied standard

OPTIONS

• Rubber bumpers
• Variety of suspenders

BODY

• A strong, lightweight, and compact design

WHEELS

• Contoured wheels that fit both tapered and flat-flange beams

COMPATIBILITY

• Adjustable flange width to fit a wide variety of beam flange widths

BEARINGS

• Maintenance-free low friction design
• Lubricated for life

OPERATION

• Geared trolley: Suited to applications with short traversing distances and precise load movement
