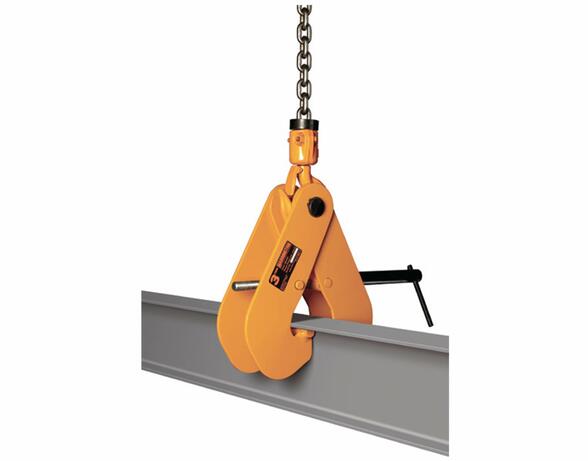

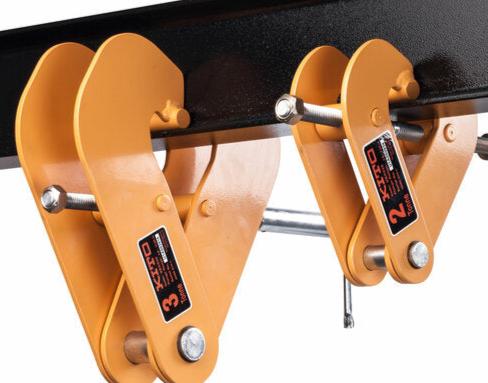

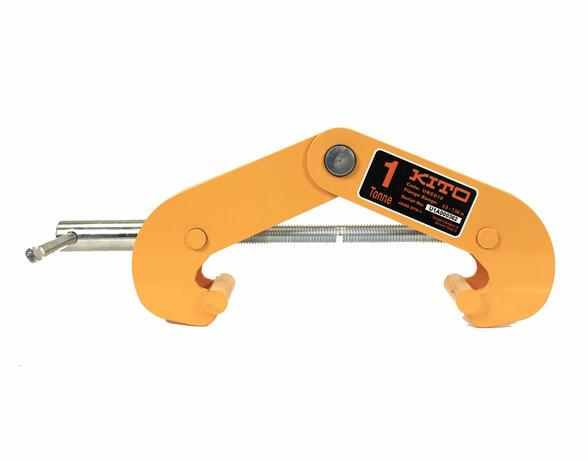

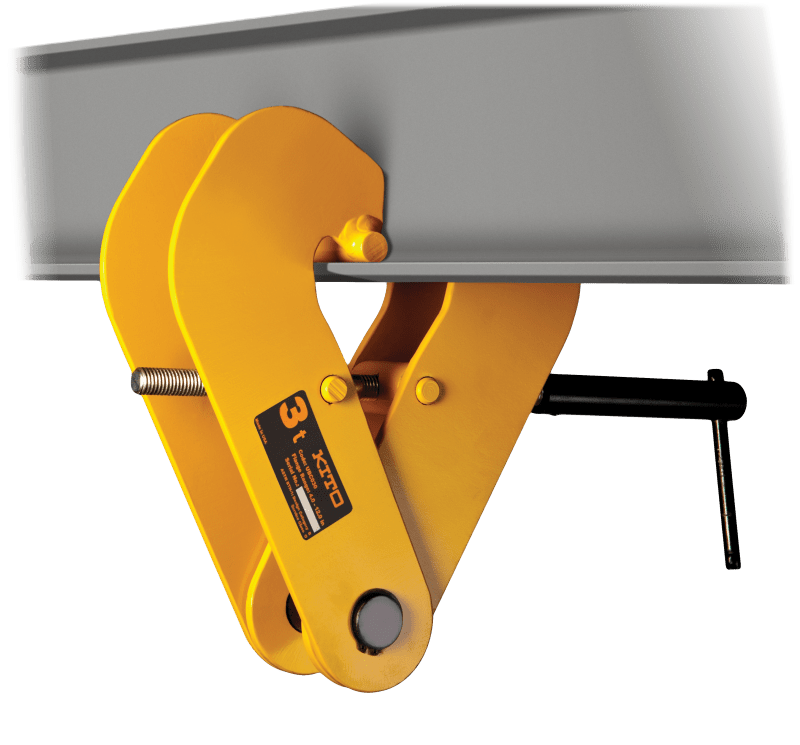

Kito UBC Universal Beam Clamp

CAPACITY: 1, 3, 5 and 10 metric tonnes

Beam Flange Range (in.)

1 tonne - 3-7.5 in

3 & 5 tonne - 4-12 in

10 tonne - 6-13.2 in

STANDARDS

ASME B30.20 Safety Standard
Meets ASME BTH-1
Each clamp is individually serialized and load tested (test certificates included)

OPTIONS

Suspender for perpendicular mounting and over-sized hooks

BODY

Solid Steel, lightweight portable frame

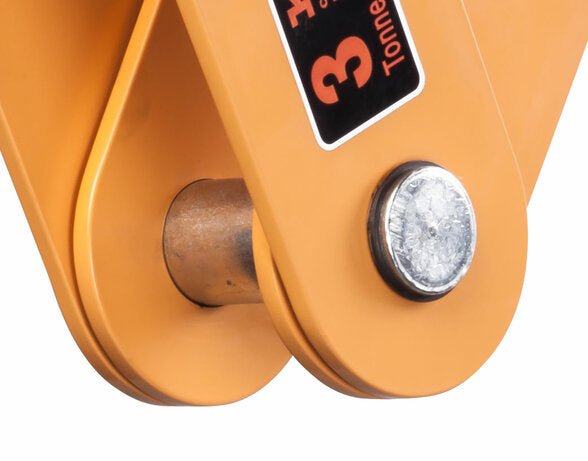

Built-in suspension pin for low headroom

OPERATION

Jaw opening adjusts for a wide range of tapered or flat flanged beams

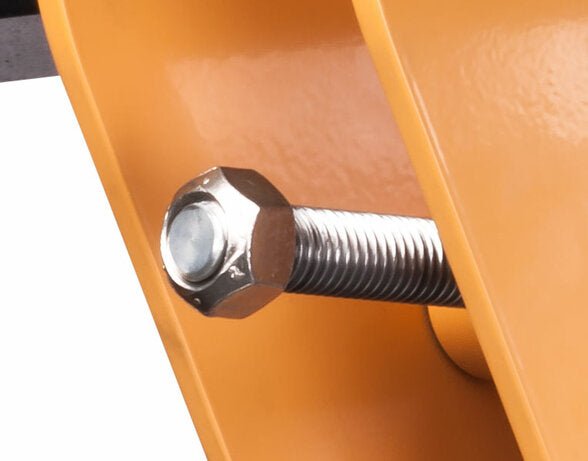

Left and right-hand clamp screw allows for a quick clamping and unclamping
For use with manual and powered hoists

HARDWARE

Lock nut feature resists loosening to improve secure clamping
Built-in suspension pin for low headroom

APPLICATIONS

Industrial and construction lifting applications
Overhead lifting and vertical rigging operations
Holding and positioning beams for construction
Below the hook holding device
